Accu Electric Servo Motor Repair

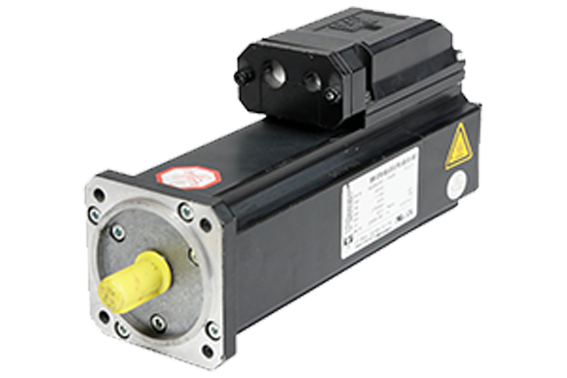

Are you looking for a reliable team to help with Elau servo motor repair? Accu Electric Motors Inc. is here to help. We opened our doors in 1993 with the aim of being the leading independent servo motor repair company in North America. We have succeeded. We are now the authorized service center for leading brands of servo motor including Fanuc, Nord, Siemens, Bautz, Baldor, and Lenze.

Why Accu Electric Inc.

We stand out from the rest because of our unique process. After you contact us, we will give you instructions on how to get the motor to us. Upon receiving it, we do a thorough diagnostic. This is meant to help identify the root cause of the performance issue. We will then send you a quotation. The repair work only starts after you approve the quotation. Our in-house team of more than 15 engineers will get to work fixing the problem areas and replacing the worn out or faulty parts using OEM parts. We also stock hard-to-find parts. For quality control purposes, testing is done throughout the repair process. We will not ship the motor back to you until we are sure it meets or exceeds the manufacturer’s specifications.

Winding Analysis

With over $75,000+ invested in our winding analysis equipment, we catch

Winding can fail over an extended period of time, and without proper testing equipment, it is
hard to determine the cause.

  • Early phase to ground leakage
  • Phase to phase leakage
  • Resistance imbalance between phases
  • Inductance imbalance between phases
  • Impedance imbalance between phases
  • Phase angle imbalance between phases

Magnetizing is a key component with most stepper and pancake motors. Due to the type of magnets in stepper motors, when the rotor is removed from the stator the magnetic properties of the rotor are lost. Without the latest magnetizing equipment, most repair shops cannot repair these jobs.

Magnetizing in House - Servo Motor & Drive Repair

  • Capable of magnetizing N55 grade neodymium rare earth magnets
  • Fixtures for almost all sizes of rotors ready in stock
  • Required for pancake motor, and stepper motor repairs
  • Fixes many low torque issues with machines

Typically your servo, stepper or pancake motor incurring damage due to an overloaded system, causing a high current fault. This high current spike will cause the magnets in your motor to become demagnetized. Once demagnetized your motor may run, but with diminished torque. Under full load your system will fail. Another scenario in which damage is incurred is by opening the stepper or pancake motor. There is a specific air gap between the magnets in the stator and the rotor itself, if this air gap is lost (IE. by the removal of the rotor) demagnetization will occur.

By magnetizing the rotor after assembly, a high flux density is obtained that can be largely destroyed if the rotor is removed.

Thus by re-magnetizing your servo motor, stepper motor or pancake motor you will be assured that your motor will have the same torque output as it did when shipped from the manufacturer.

In this case BOSCH was unable to repair their own motor due to extreme damage. However, we were able to rebuild this motor in 24 hours to get the client up and running with manufacture matched specifications.



Servo Motor Repair Services 02

Full time dedicated machinists in shop allows us to repair industrial automation equipment with the highest quality standard. Not taking shortcuts we insure all our products are well fitted to manufacturer specifications.

  • In house dedicated machinist
  • Designs by mechanical engineers
  • New shaft installation and repair
  • Retrofitting in house

Since we are outfitted with a Machine shop, we do not need to send any work out, thus we keep our repair cost down, and are not dependent on someone else to complete repairs.

Servo Motor Repair Services 03

Often after repair of magnets and other rotor related faults, balancing is lost. Resulting in a vibrating noisy motor.

Our in-house balancing insures your motor will run smooth and quite the first time you plug it in.

One of the most effective measures for preventative maintenance is infrared technology. With it we can determine faults in areas such as:

  • Bearings and bearing housings
  • Overheating winding
  • Overcurrent
  • Hot spots in breakers, contactors, fuses, transformers & more.
  • Coreloss testing (as shown below)
  • Servo Motor Repair Services 04
  • Servo Motor Repair Services 05
  • Servo Motor Repair Services 06

Servo Motor Repair Services 06

Looking for a place to get your feedback device tested, or repaired? We specialize and are certified in all industrial automation feedback. Resolvers, incremental encoders, absolute encoders, linear encoders, optical encoders, hall sensors, tacho generators, texans, and more.

With over $400, 000 inventory of feedback devices, if we can’t repair your encoder, we can replace it.

With over a million invested in testing of servo motors, we now house the most operational servo drives in North America.

All servo equipment is run tested on it’s manufacture designated servo drive to insure correct operation the first time. Outfitted with testing software and hardware of all major brands. Stocking over $400,000 in feedback devices such as Resolvers, Encoders, Tachs.

We own over 30 robots and CNC machines that we use for full load run tests of devices like motors, pulse encoders, amplifiers, drives, power supplies, CPU boards, I/O boards, teach-pendants, displays, extended access units, reducers/gearboxes, all types of cables …

We run pumps with the appropriate liquid as water, coolant, oil or some other liquids prior for it to leave the shop.

Feedback Device Repair Capabilities Include

Being certified by various electric motor producers we provide repair services to all major brands and most minor feedback devices. We carry a large stock of all kinds of replacement parts from all major and most minor producers. Choosing Accu Electric Motors Inc. you are guaranteed to get the fastest top quality service.

Encoders

We provide you with both mechanical parts (including back covers) and electronic parts of encoders. We repair all types of encoders including:

  • Incremental Encoders
  • Mechanical Absolute Encoders
  • Optical Absolute Encoders
  • Magnetic Absolute Encoders
  • Capacitive Absolute Encoders
  • Battery-Powered Multi-Turn Encoders
  • Geared Multi-Turn Encoders
  • Geared Multi-Turn Encoders

Feedback Devices - Encoders

Tachometers

Do you have problems with your old Tachometers that are out of production? Then you came to the right place! We can always find new model that will fit just perfectly to your old motor. We can also repair your old tachometers. Up to you to decide.

Servo Motor Repair Services 01

Resolvers

Are you troubled with your old resolver that is out of production? Then you have come to the right shop! We can sure provide a new model that will correctly fit to your old motor. At that we can repair your old resolver. It’s up to you to decide and save.

Servo Motor Repair Services - 02

200,000

Units Repaired

85

Years Of Experience

24

Hour Technical Support

Do you need the repairs done urgently? We offer emergency services. These are made available at an extra fee. We complete most of the rush repair services within 24 hours. At the end of the repair work, we prove to you that we stand behind our work by offering a comprehensive one year warranty.

Our business is focused on providing you with fast and economical Elau servo motor repair services. You just need to contact us and let us know what you need. Our highly trained and experienced technicians have the equipment to diagnose and complete any servo motor repair. Quality has always been a top priority for us.

Servo Motor Repair Manufacturers

Contact Us today, and get a free consultation!
